Valour promosales are the best trader of battery ups in ncr and delhi.We are the trusted company.We provide best battery ups in ncr.we beleive in client sattisfaction The Amplon E series is a true on-line, double-conversion UPS housed in a compact tower and recommended for workstations, POSs, ATMs and home appliance.
The Amplon E series is designed for long backup time applications with the addition of a battery source. An inbuilt high level charger shortens the recharging period and increase the availability
Features:Model | E-1K / E-2K / E-3K |
Power Rating | [1K]:1kVA/700W,[2K]:2kVA/1400W,[3K]:3kVA/2100W |
Input | |
Nominal Voltage | 230 Vac (single phase) |
Voltage Range | 80 ~ 280 Vac (full load) * |
Frequency | 40 - 70 Hz |
Power Factor | > 0.97 |
Electrical Connection | [1K]:IEC320 C14,[2K]:IEC320 C20,[3K]:IEC320 C20 |
Output | |
Voltage Regulation | ± 2% |
Frequency | 50 or 60 ± 0.05 Hz |
Transient Response | < 8% (10 ~ 90% linear load) |
Voltage Harmonic Distortion | ≤ 3% (linear load) |
Overload Capability | 105 ~ 125%:3 minutes,125 ~ 150%:30 seconds,> 150%≥0.5 second |
Receptacle India type | 10A x 2 |
Battery | |
Rating Voltage | [1K]:36 Vdc,[2K]:72Vdc,[3K]:72Vdc |
Charge Current | Built-in: 4A (adjustable),Extra charger (optional): 4A (external installation) |
Electrical Connection | Terminal block |
Interface | |
Standard | RS232 x 1,Smart slot x 1 |
Conformance | |
Safety & EMC CISPR | 22 Class A |
Other Features | |
AC-start & Battery-start | Yes |
External Battery Pack | Optional |
Efficiency | |
AC-AC | > 87% (full load) |
Environment | |
Operating Temperature | 0 ~ 40ºC |
Relative Humidity | 0 ~ 90% (non-condensing) |
Audible Noise (at one meter) | [1K]: 45 dBA , [2K]: 54 dBA , [3K]: 54 dBA |
Physical | |
Dimensions (WxDxH) | [1K]: 140 x 362 x 267 mm |
Weight | [1K]:5 kg, [2K]:7 kg ,[3K]: 7 kg |

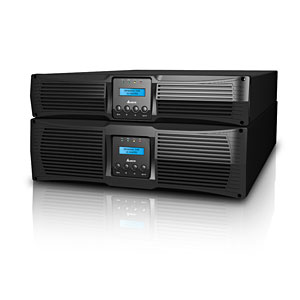

The Amplon RT series delivers double-conversion on-line technology, high power density and input power factor, and low current harmonics with its advanced architecture. Designed in a rack or tower configuration with an LCD display, Amplon RT offers advanced performance for servers, data centers, networking, VoIP and telecommunications.
The Amplon RT has 1+1 parallel redundancy function to provide higher reliability. Optional external battery pack can be added to fulfill longer backup time for mission critical applications.
Features:Model | RT-5K / RT-6K / RT-10K |
Power Rating | [5K]:5kVA/4.5kW,[6K]:6kVA/5.4kW,[10K]:10kVA/9kW |
Input | |
Nominal Voltage | 200/208/220/230/240 Vac (single phase) |
Voltage Range | 100~300Vac * |
Current Harmonic Distortion | < 5% (full load) |
Power Factor | > 0.99 (full load) |
Frequency | 40 ~ 70 Hz |
Electrical Connection | Terminal block |
Output | |
Voltage | 200/208/220/230(default)/240 Vac (single phase) |
Voltage Harmonic Distortion | < 2% (linear load) |
Voltage Regulation | ± 1% (static), ± 2% (typical) |
Frequency | 50 or 60 ± 0.05 Hz |
Overload Capability | 106 ~ 110%: 10 minutes,111 ~ 125%: 5 minutes,126 ~ 150%: 30 seconds |
Electrical Connection | Terminal block |
Crest Facto | r 3:1 |
Battery & Charger | |
Nominal Voltage | [5K]: 192 Vdc,[6K]: 192 Vdc,[10K]: 240 Vdc |
Charge Current | Built-in: maximum 4A (adjustable), Additional charger board (optional): maximum 4A (internal installation) |
Electrical Connection | Exclusive cable |
Interface | |
Standard | RS232 x 1, SNMP slot x 1, Smart slot x 1, Parallel port x 1 |
Conformance | |
Safety & EMC | CE, TUV, EN62040-1,CISPR 22 Class A |
Others Features | |
Parallel Redundancy | 1+1 |
Remote Control | REPO, Remote On/Off |
Common Battery Installation | Yes |
Efficiency | |
AC-AC | 92% (full load) |
ECO Mode | 96% (full load) |
Environment | |
Operating Temperature | 0 ~ 40ºC |
Relative Humidity | 0 ~ 95% (non-condensing) |
Audible Noise(at one meter) | 54 dBA ** |
Physical | |
UPS Dimensions(WxDxH) | [5K]: 440 x 671 x 89 mm,[6K]:440 x 671 x 89 mm,[10K]:440 x 623 x 131 mm |
Battery Pack Dimensions(WxDxH) | [5K]:440 x 638 x 89 mm,[6K]:440 x 638 x 89 mm,[10K]: 440 x 595 x 131 mm |
UPS Weight | [5K]:15 kg,[6K]: 15.5 kg,[10K]:21.3 kg |
Battery Pack Weight | [5K]:36 kg,[6K]:36 kg,[10K]:66 kg |

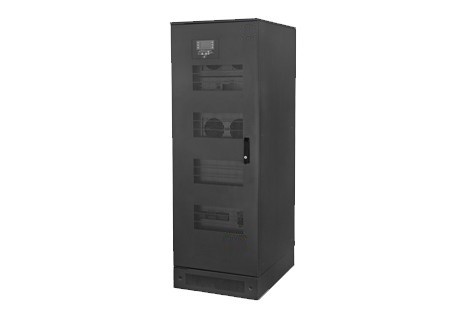

Falcon 3000 series is a three phase to single phase online UPS with advanced PFC technology and self diagnosis

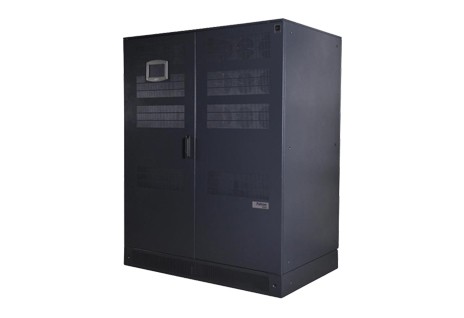

Falcon 5000 range of IGBT based rectifier UPS systems are designed, for the data security and business continuity of today’s networked and cloud environment. Its unique modular design and compact footprint comes with variety of special features which are uncommon in this category of UPS Systems.

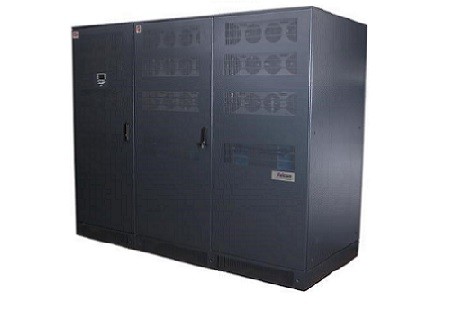

The Falcon 7000 range of VFI (double conversion mode) UPS from 60 – 500 KVA is the first high power, transformer free UPS which has been designed specifically for the harsh power and site conditions found in India and other emerging markets.

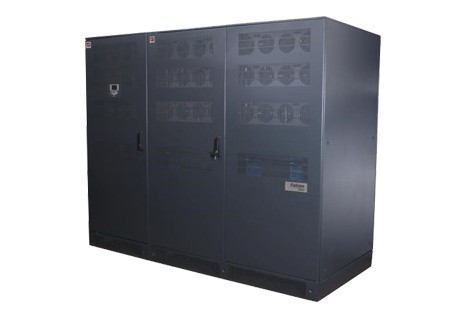

Falcon 8000 range of UPS systems are designed, for the data security and business continuity of today’s networked and cloud environment. Its unique modular design and compact footprint comes with variety of special features which are uncommon in this category of UPS Systems.

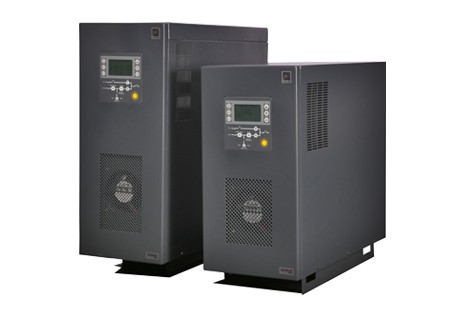

Sunbird off grid bi directional solar inverter is the new generation inverter, which has been designed specially for the solar application. Our long standing, Two decade expertise in solar On Grid and Off grid inverter market has resulted in to a smart, more reliable and efficient Sunbird Solar Inverter. Sunbird Solar inverter has many unparallel features, which gives best ROI for the user and helps in bringing the dream of Green planet more closer.
